Beam ends

Beam ends

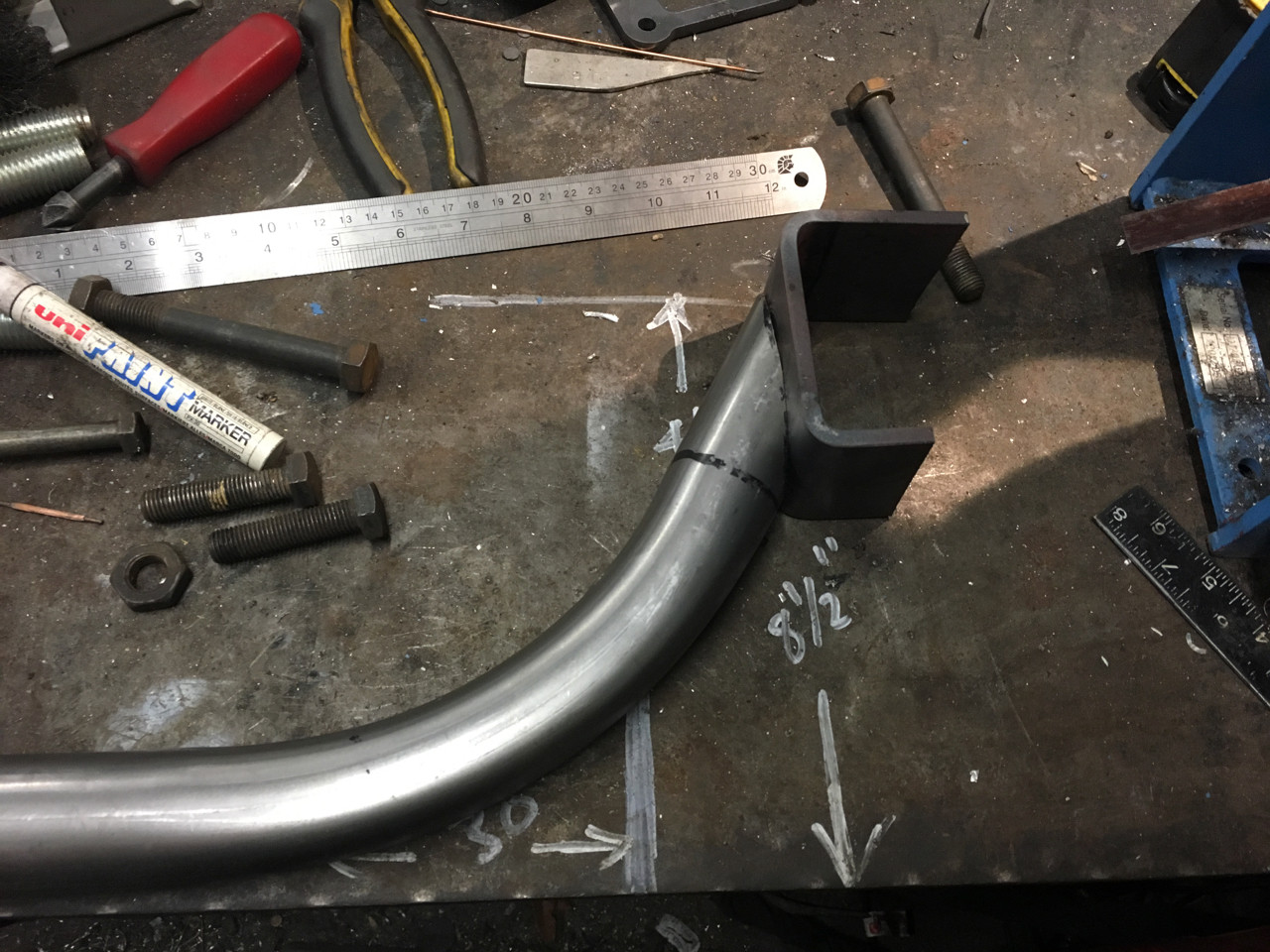

The top of the vertical link should be about 8 1/2" from the base / bottom of the front beam. I made the beam ends about 100mm tall, this dimension was simply to match the height of the end of the tube.
