Subframe construction
CycleKarts

Subframe construction

Making a steel subframe to support the aluminium sections.

Author Gary Flyght
Published May 19, 2026
Views 62

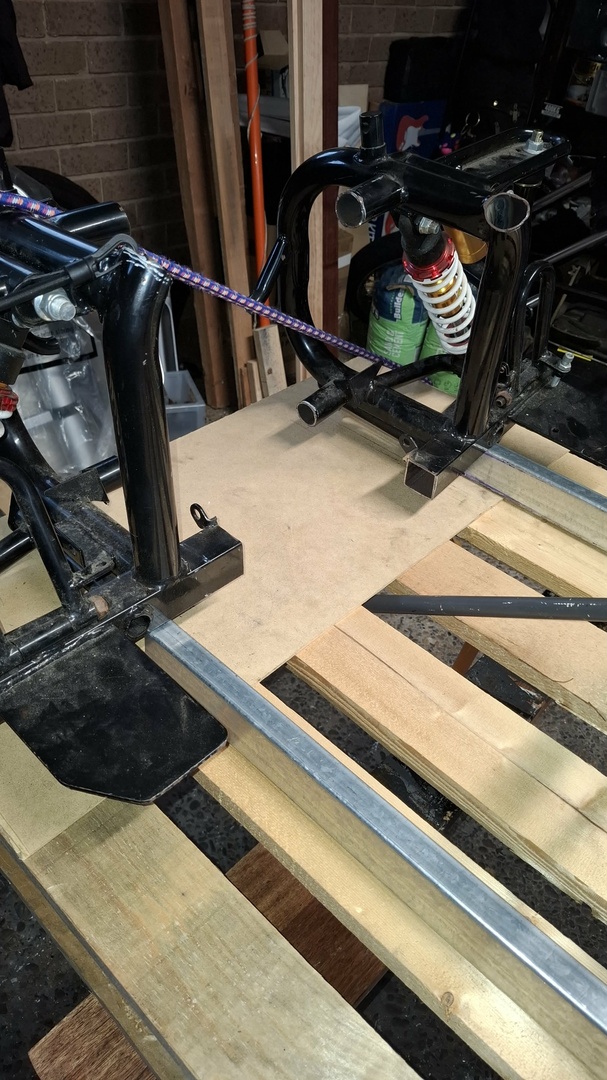

The body of the kart will be constructed of a 3 part aluminium frame on top of a 50mm x 20mm subframe for strength. The steel subframe is welded to the newly widened Drift 2 front end, with a 50 x 20 cross member at the rear of the frame and two tringular brace pieces welded in to prevent diagonal movement.








Comments

Pursang 2026-05-30 08:38
A riveted or screwed on floorpan, or some X members, even alloy ones, would add some lateral stiffness. Obviously the engine supports and seat structure will help at the rear. Cheers, Daryl.
Gary Flyght 2026-05-31 08:43
Cheers Daryl, yes there is an aluminium cross frame to go between these rails - to be the subject of the next build page. Gary
