Pursang published a new post in Pursangs "Vintage Morgan" Inspired 3 Wheeler.

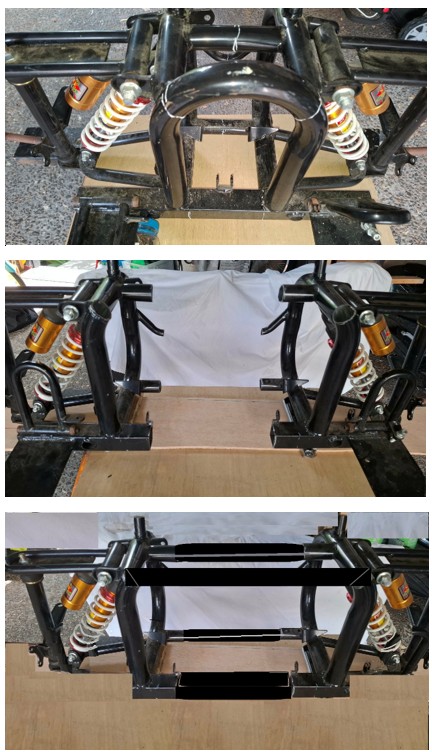

How I am mounting the swingarm and the strange alignment issue. Part 2
this! Might not look like much, (5mm x & y) but significant strain if i force it to fit and/or at the end of a 500mm swing arm and a 600mm diam tyre it's multiplied way out of whack! 3 solut...

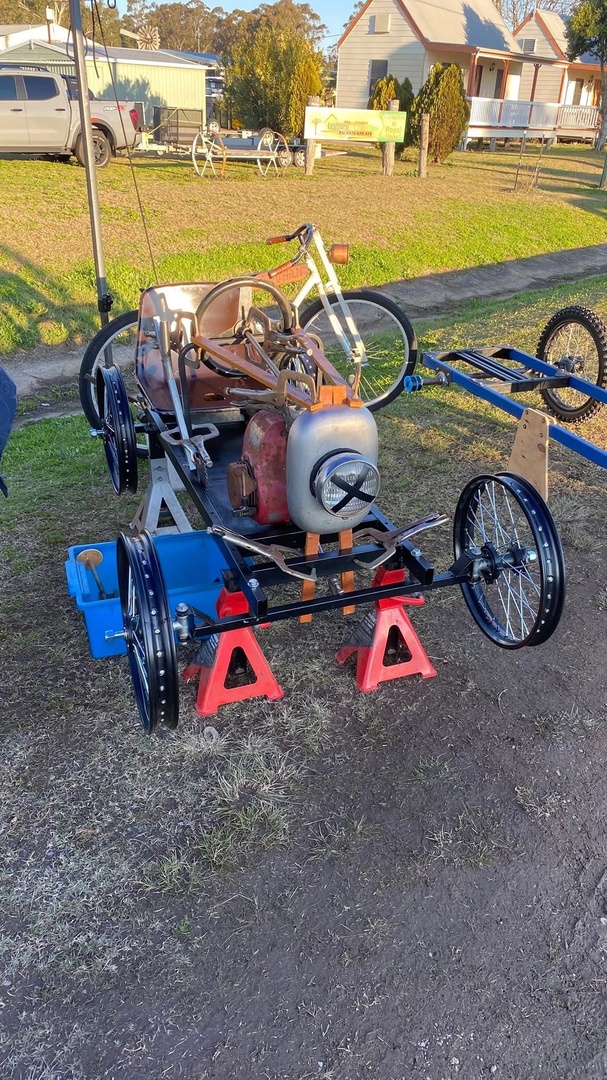

Justin Wilkie published a new post in Justin's Morgan Inspired Cyclekart
Week 1
Alot of progress..
Front arms were purchased and heavily modified to suitChassis turned out alright i thinkCurrently working on rear suspension (due to engine mounting where the motorcycle shock would normally be)Rear h...
created a new Build Page Austin Kurtis
Pete Allen published a new post in Lil’ Baz

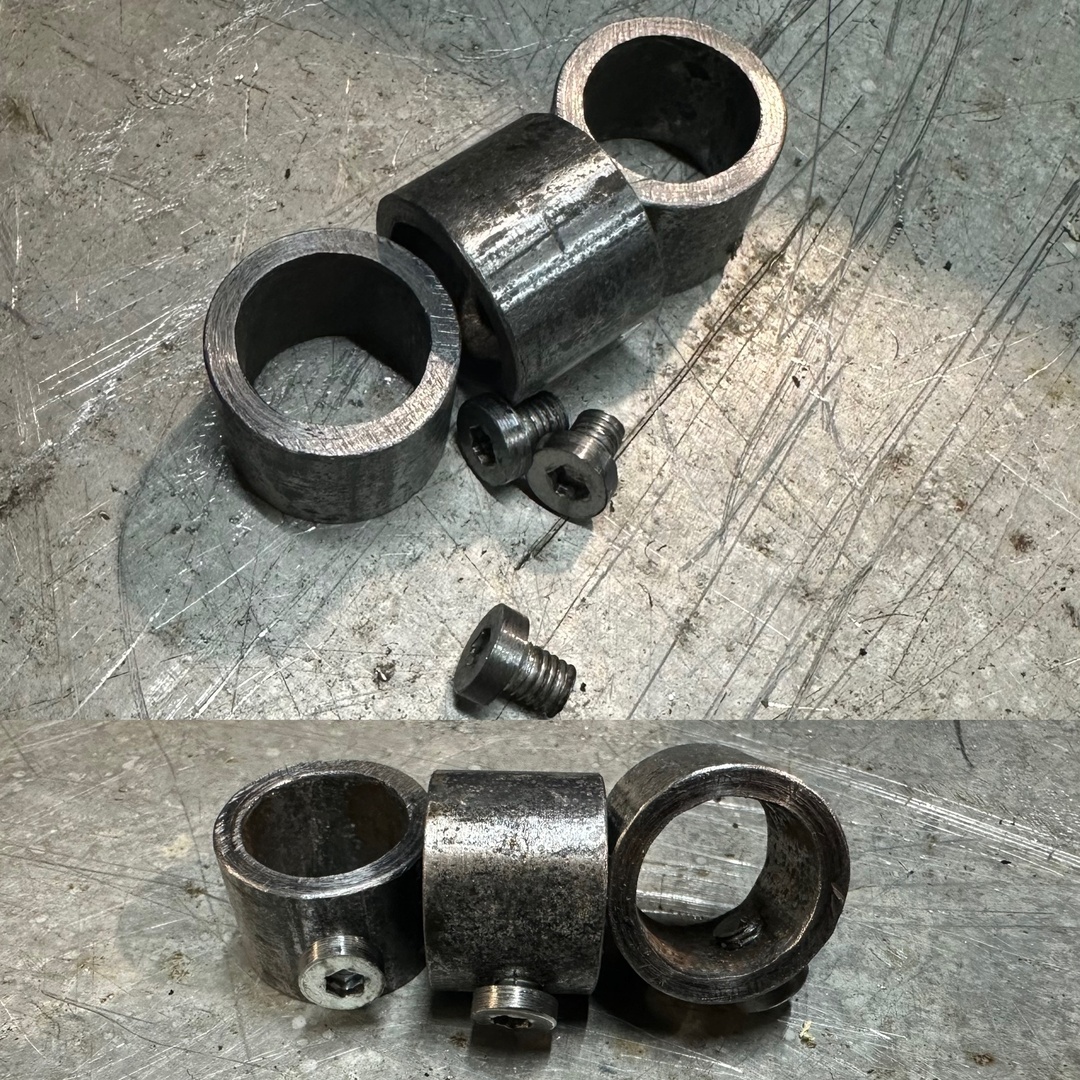

DIY shaft collars
Simply these are sections of thick wall water pipe with the inside lathe skimmed to size, tapped to M6x1.0 and some Allen head bolts I had lying around - shortened and head skimmed to trim weight.&nbs...
Pete Allen published a new post in Lil’ Baz

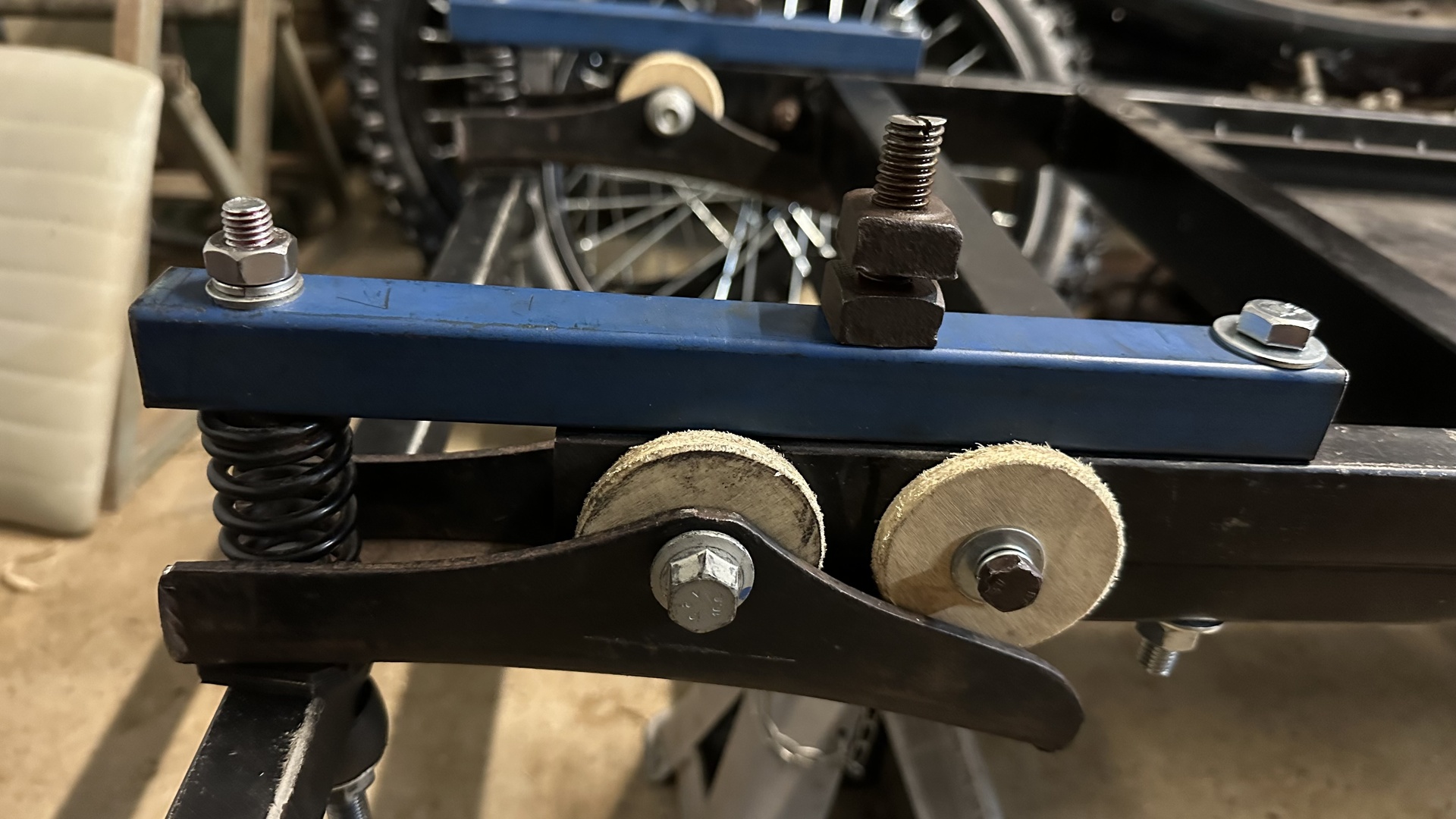

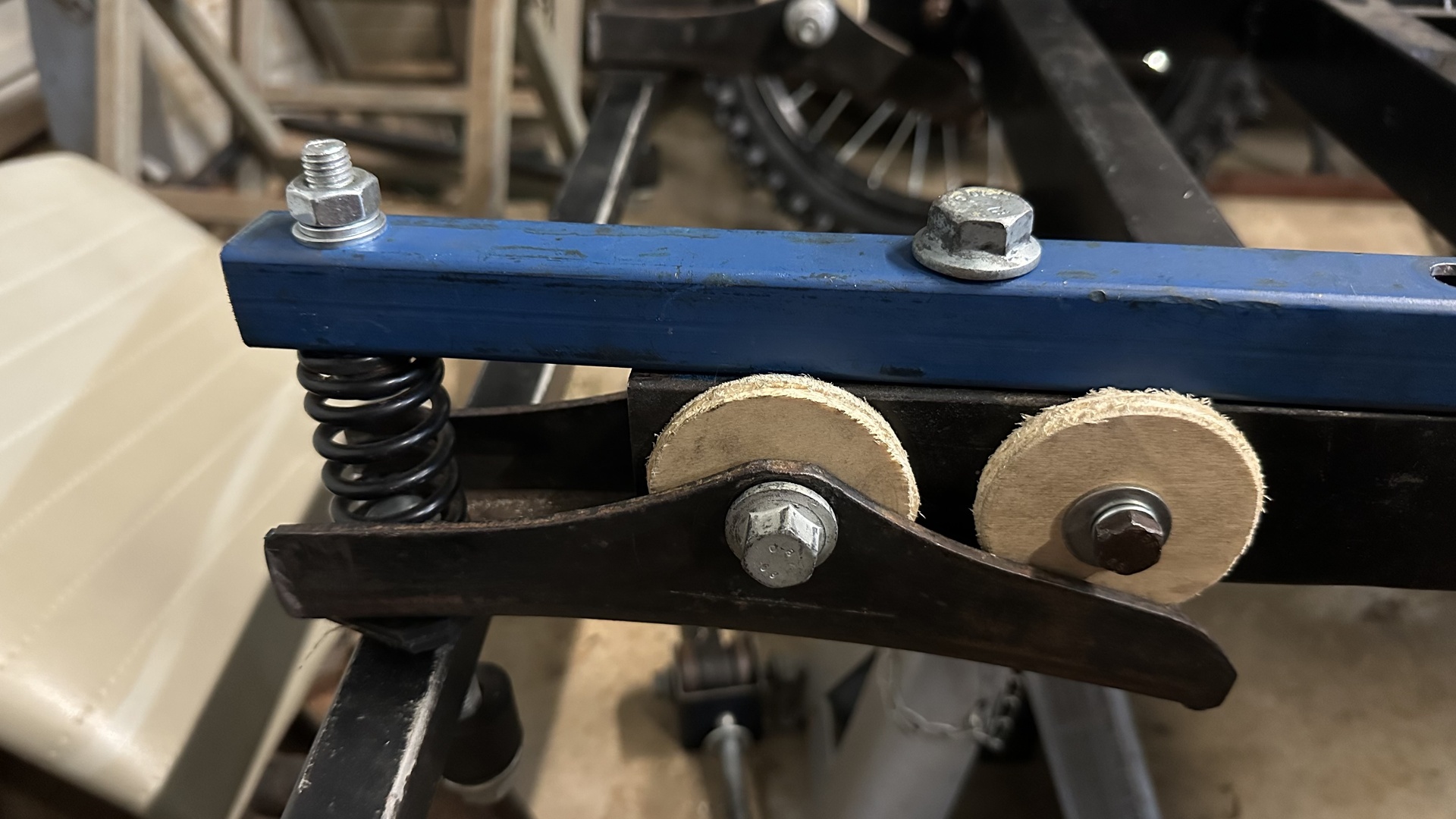

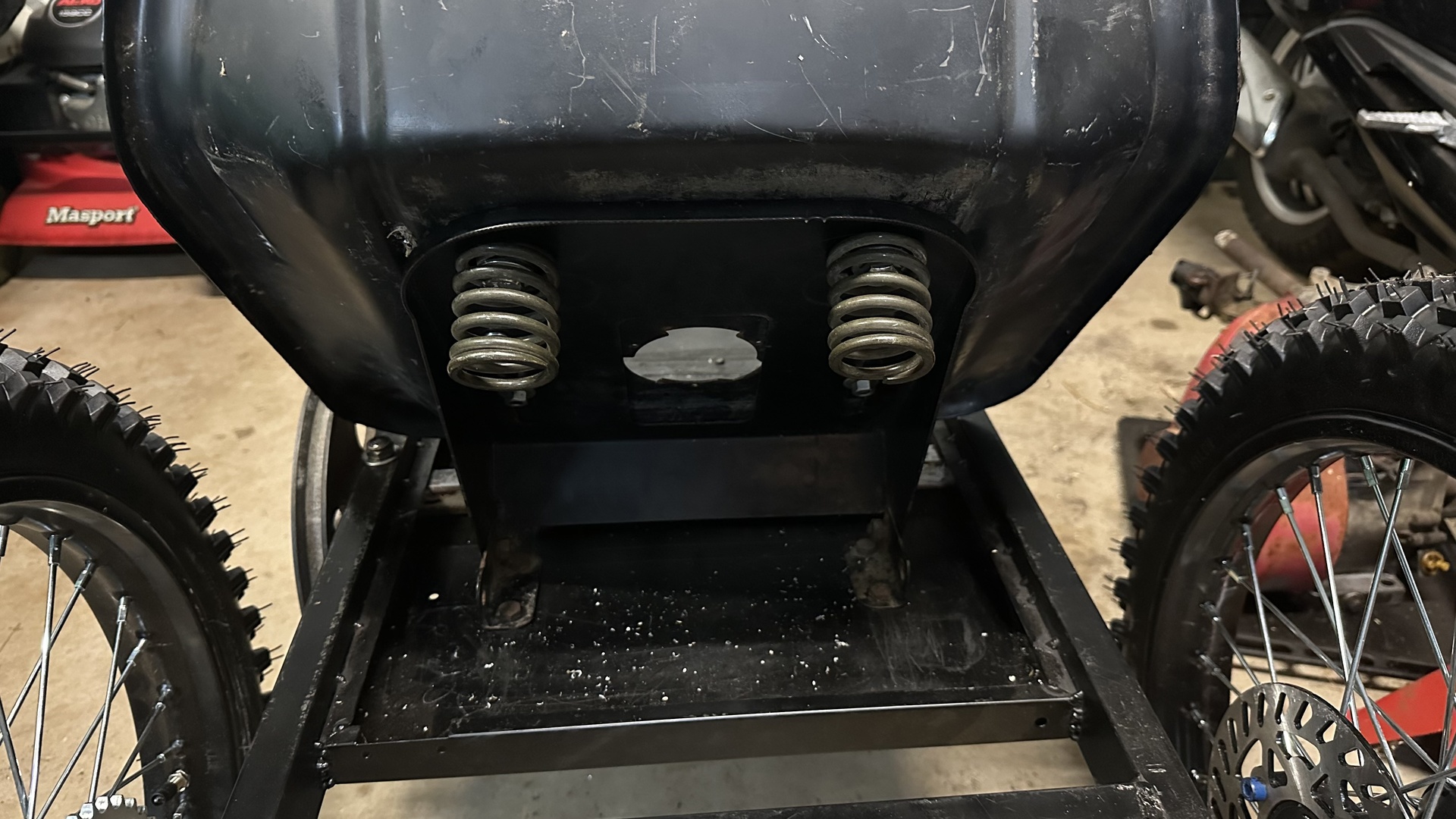

Shockies updated
Allthread and square nuts allow for preload adjustment.
One "fix" (and I use that term very loosely) would be to make an eccentric bush to bring the two into alignment. Easy enough if you have a 4 jaw chuck. Just need to ensure that it does not rotate in the pivot arm when installed.
A better (but no more elegant) solution is to break out the oxy and persuade them back into alignment. Hold the base, maybe even tack it to your welding bench, and heat the left arm below the pivot housing. Then use a long lever bar to realign. Wouldn't take too much. Might even be able to do it cold with enough force.
